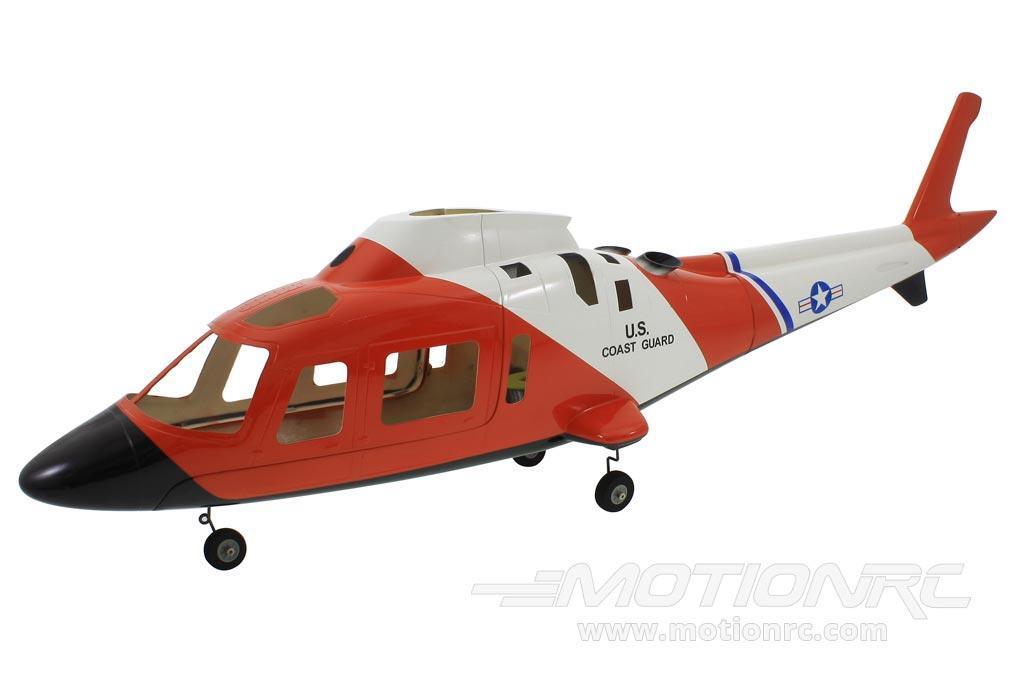

A-109 Coast Guard 600 Size Helicopter Scale Conversion Kit from Roban - RBN-KF-109CG6
The A109 is a lightweight, twin-engine, eight-seat multi-purpose helicopter built by the Italian manufacturer Leonardo. The rotorcraft had the distinction of being the first all-Italian helicopter to be mass-produced. Originally entered service in 1976 and has since been used in various roles, including light transport, medevac, search-and-rescue, and military roles. The A109 has been in continuous production for 40 years. This is the 600 size A-109 Coast Guard version.
Most of the work is done for you. All wood work is installed. Tricycle retractable landing gear are included. Pre-drilled holes for easy install of the landing gear. Standard 600 set up is an 1100 kV brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.
This fuselage can be completed in as little as 4-6 hours and is intended for the intermediate to advanced builder.
Features:
- Fully painted fiberglass scale fuselage
- Tricycle retractable landing gear
- Magnetic cabin lock system for quick and easy access
- Extremely detailed surface and molded panel lines
- Use of 600 standard equipment (6S Battery, 1100kV motor), fly with your existing parts

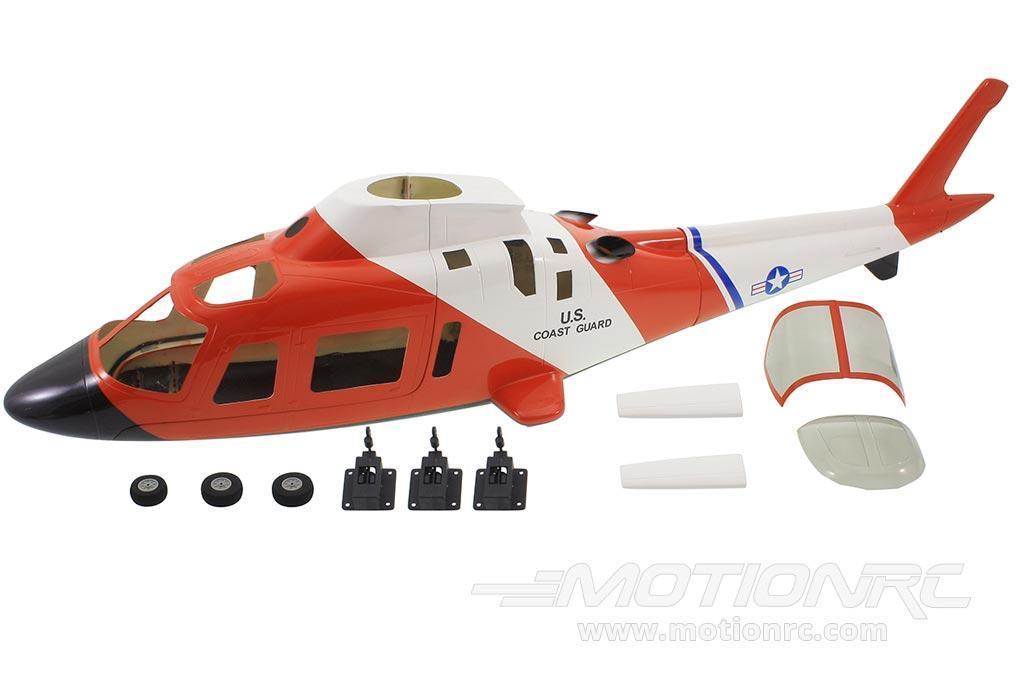

Includes:
- Roban A-109 Coast Guard 600 body kit
Requires:
- 600 Size helicopter mechanics
- Helicopter flight controller - we recommend the Tarot ZYXS2 3-Axis Flight Controller
- Electronic speed control (ESC) - we recommend the Castle Creations Talon High Voltage 120A ESC with 20A BEC
- Brushless motor - we recommend the Scorpion HKIII 4025-730kV brushless motor
- Three cyclic servos - we recommend the MKS DS-1210
- Tail servo - we recommend the MKS DS760
- Two Retract servos - we recommend Hitec HS-430BH
- Y harness for retract servos - we recommend Admiral 12" Servo Y Extension
- 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 connector - We recommend the Admiral 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 Connector
- 7 Channel radio - select a minimum 7 channel radio with pitch and throttle curves from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
