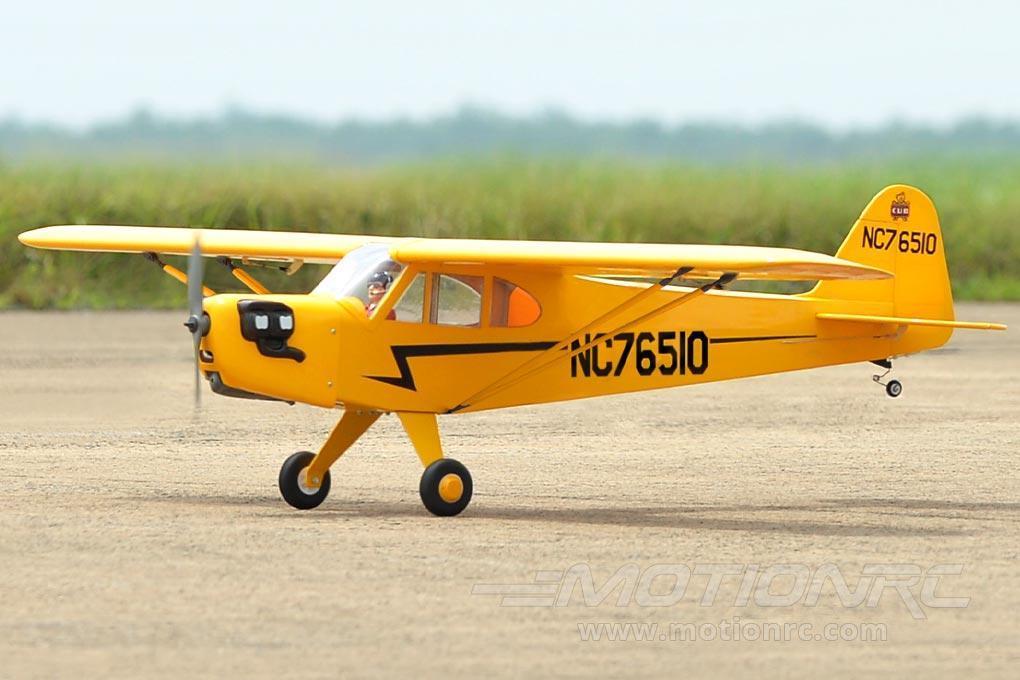

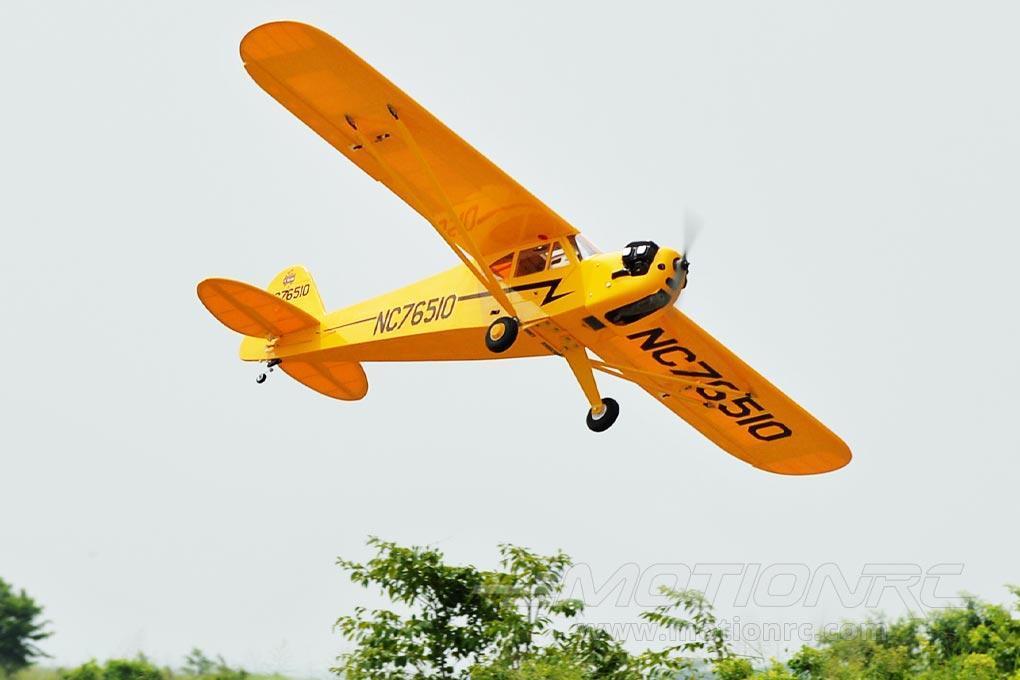

Piper Cub 1950mm (76.77") Wingspan from Black Horse - Balsa Wood ARF - BHCU000
The Piper J-3 Cub is an American light aircraft that was built between 1937 and 1947 by Piper Aircraft. The aircraft has a simple, lightweight design which gives it good low-speed handling properties and short-field performance.
Our model is scaled to approximately 1:6 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using an internal combustion engine of about 7-10cc displacement.
Visit the Official Black Horse Piper Cub 1950mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box

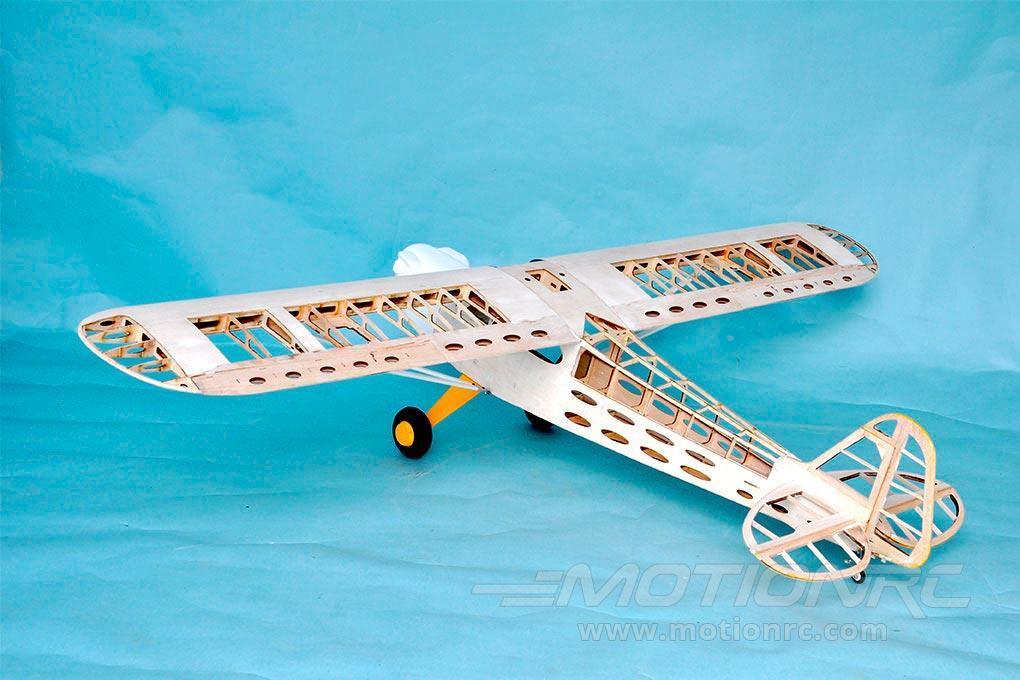

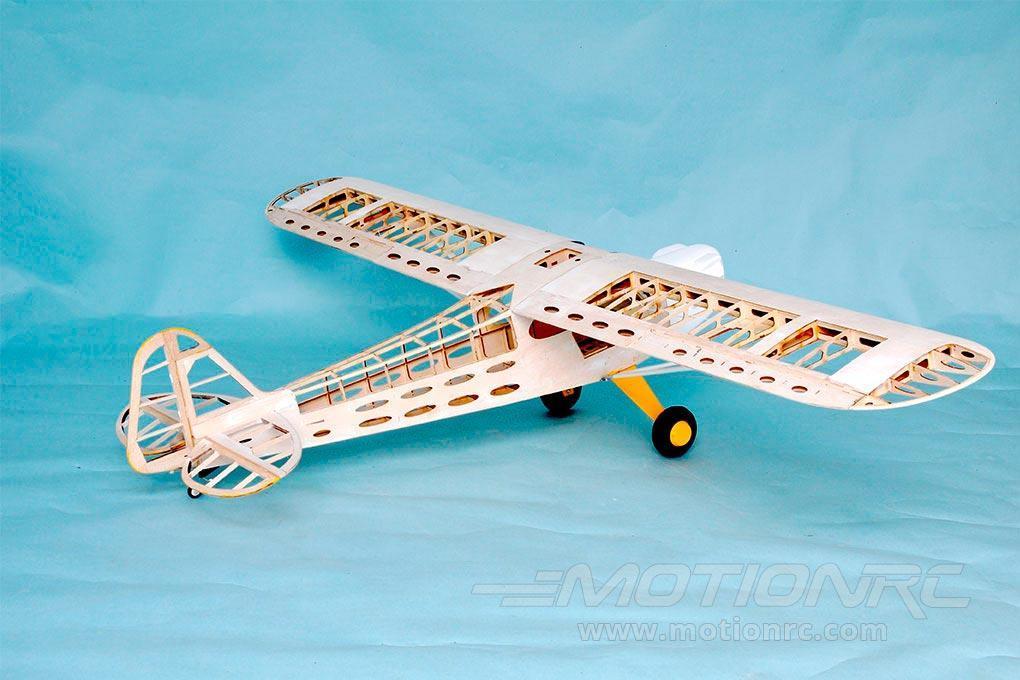

- Lightweight, strong, and partially sheeted laser cut balsa and plywood construction
- Covered in high quality Oracover film

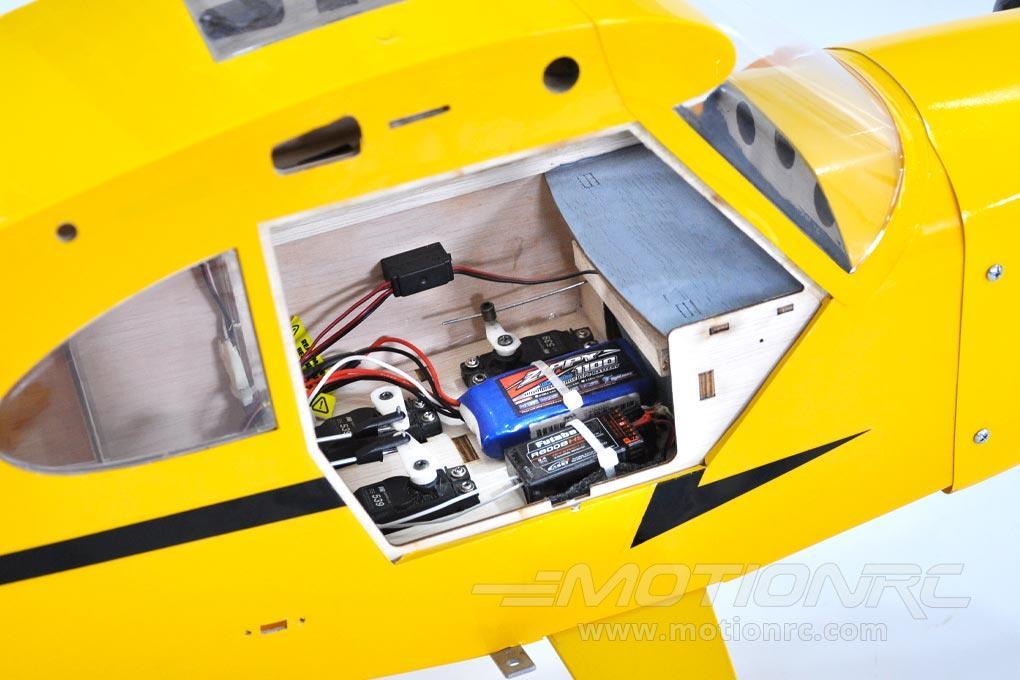

- Large easy access fuel tank/battery/servo access door
- Detailed and hand painted pilot included
- Fiberglass control horns
- Mylar C/A hinges on all control surfaces
- comprehensive control and fitting accessories included
- Two-piece, wings simplify transportation and assembly

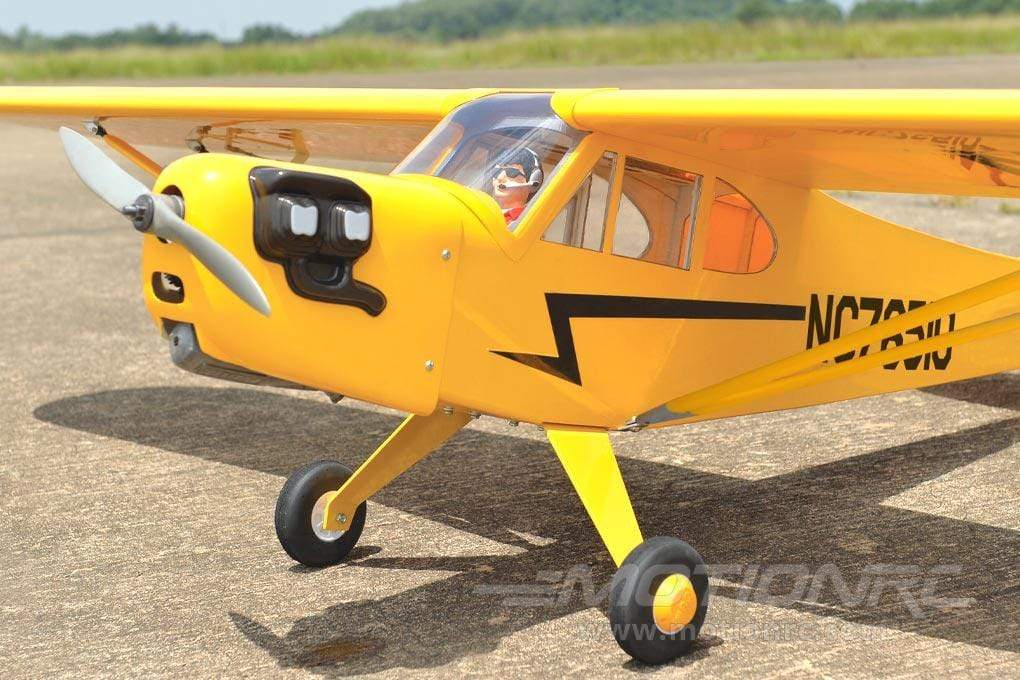

- Painted and details fiberglass cowl
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse Piper Cub 1950mm (76.77") Wingspan - ARF
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 1100-1600 Watt brushless outrunner motor - we recommend the Admiral GP10 5030-400kV brushless motor
- 60-100 amp brushless ESC - we recommend ZTW Gecko 85A ESC with 8A SBEC with XT-60 Connector
- 5x 45g standard servos - we recommend HS-311
- 6 Cell 22.2V 4000mAh LiPo Battery with XT60 connector - we recommend Admiral 4000mAh 6S 22.2V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend APC 14x8.5 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection

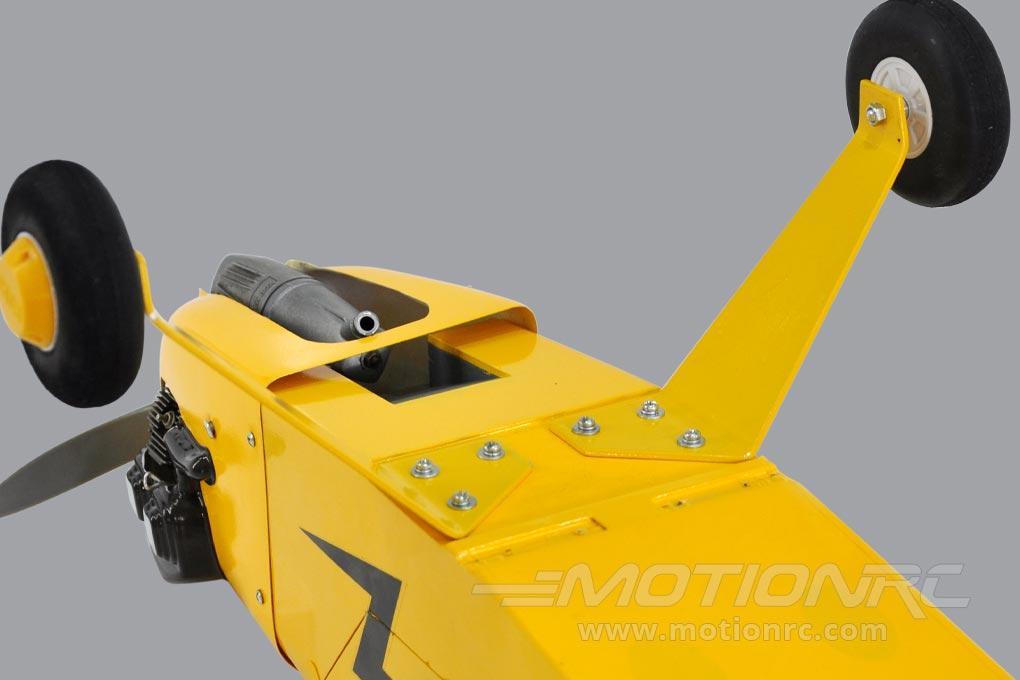

Requires (Gas):
- Engine: 9cc Gas / .60ci Nitro. NGH GT-9 recommended
- Gas Propeller: 11x6 - 12x6 APC recommended
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
